Electric-opening Autoclave

Industrial autoclaves adopt electric-powered door structure, less operating procedure, flexible for opening and closing. Electric-powered autoclave door opening, building material like aac blocks, fly ash bricks are carried into autoclave chamber, and then closing autoclave door. It is as safe as other steam curing autoclaves.

Electric-opening Autoclave
  • Diameter

    5 - 60m

  • Pressure

    1.0MPa-1.6MPa

  • Length

    >1.5m

  • Application

    Building Material,AAC plant

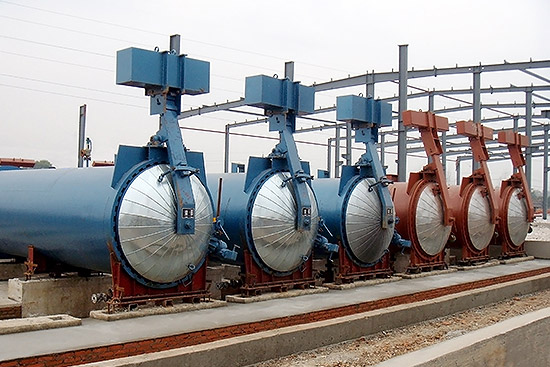

electric-opening autoclave1.jpg

High-quality raw materials

a. Professional imported rubber seal, good sealed, easy installation, long service life.

b. Autoclave cover flange adopts 16Mn solid forging process, with ultrasonic nondestructive testing, being higher national pressure vessel standard.

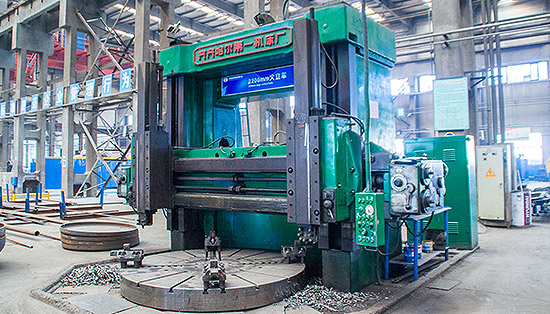

electric-opening autoclave2.jpg

Advanced processing technology

a. Pipeline operations, automatic welding, stable quality and high efficiency.

b. CNC vertical lathe directly rolls autoclave door steel, reduce number of welding, improving its leakproofness and safety.

electric-opening autoclave3.jpg

ASME Certifications

ZBG holds Boiler and Pressure Vessels ASME certification of American Society of Mechanical Engineers, with large-scale power station boiler project total package qualification can provide customers a full range of products and services.

Electric-opening Autoclave system
Model kettle diameter
(m)
Effective length Maximum working pressure
(Mpa)
Maximum working
temperature(℃)
Design pressure
(Mpa)
Design
temperature(℃)
Working medium Total length
L(m)
Width
W(m)
Height
H(m)
FGZSD 1.0-1.65 x L Φ1.65 Customized 1.0 183 1.1 187
Saturated
steam
Condensate water
L+0.65 2.619 2.595
FGZSD 1.3-1.65 x L Φ1.65 1.3 195 1.4 198 L+0.65 2.619 2.595
FGZSD 1.0-2.0 x L Φ2.0 1.0 183 1.1 187 L+0.9 2.965 3.225
FGZSD 1.1-2.0 x L Φ2.0 1.1 187 1.2 192 L+0.9 2.965 3.225
FGZSD 1.3-2.0 x L Φ2.0 1.3 195 1.4 198 L+0.9 2.965 3.225
FGZSD 1.5-2.0 x L Φ2.0 1.5 201 1.6 204 L+0.9 2.965 3.255
FGZSD 1.3-2.2 x L Φ2.2 1.3 194 1.4 197 L+1.3 3.288 3.43
FGZSD 1.5-2.2 x L Φ2.2 1.5 201 1.6 204 L+1.3 3.288 3.43
FGZSD 1.3-2.4 x L Φ2.4 1.3 194 1.4 197 L+1.56 3.154 3.917
FGZSD 1.5-2.4 x L Φ2.4 1.5 201 1.6 204 L+1.56 3.154 3.917
FGZSD 1.3-2.5 x L Φ2.5 1.3 195 1.4 197 L+1.56 3.254 4.017
FGZSD 1.5-2.5 x L Φ2.5 1.5 201 1.6 204 L+1.56 3.254 4.017
FGZSD 1.3-2.68 x L Φ2.68 1.3 194 1.4 197 L+1.754 3.28 4.143
FGZSD 1.5-2.68 x L Φ2.68 1.5 201 1.6 204 L+1.754 3.28 4.143
FGZSD 1.3-2.85 x L Φ2.85 1.3 194 1.4 197 L+1.754 3.58 4.493
FGZSD 1.5-2.85 x L Φ2.85 1.5 201 1.6 204 L+1.754 3.58 4.493
FGZSD 1.3-3.0 x L Φ3.0 1.3 194 1.4 197 L+1.8 4.537 4.66
FGZSD 1.5-3.0 x L Φ3.0 1.5 201 1.6 204 L+1.8 4.537 4.66
FGZSD 1.3-3.2 x L Φ3.2 1.3 194 1.4 197 L+1.9 4.74 5.131
FGZSD 1.5-3.2 x L Φ3.2 1.5 201 1.6 204 L+1.9 4.74 5.131
