Top-opening Autoclave

Top-opening autoclave, just as its name implies, its door must be opening from bottom to top, and closing from top to bottom. Expect for it, top-opening autoclave has the same technology support, advantages, applications as others. ASME standard top-opening autoclave is also available.

Top-opening Autoclave
  • Diameter

    5 - 60m

  • Pressure

    1.0MPa-1.6MPa

  • Length

    >1.5m

  • Application

    Building Material

top-opening autoclave1.jpg

High-quality raw materials, advanced processing technology

a. Professional imported rubber seal, good sealed, easy installation, long service life.

b. Pipeline operations, automatic welding, stable quality and high efficiency.

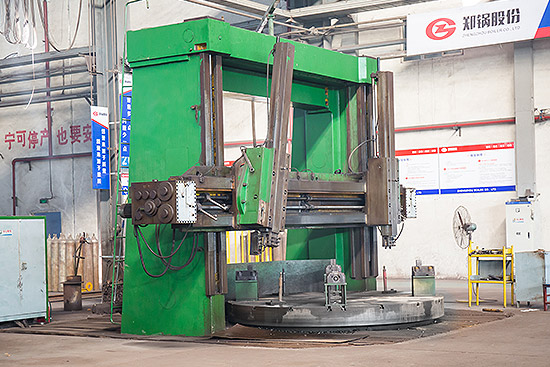

c. CNC vertical lathe directly rolls autoclave door steel, reduce number of welding, improving its leakproofness and safety.

top-opening autoclave2.jpg

Flexible structure, saving space

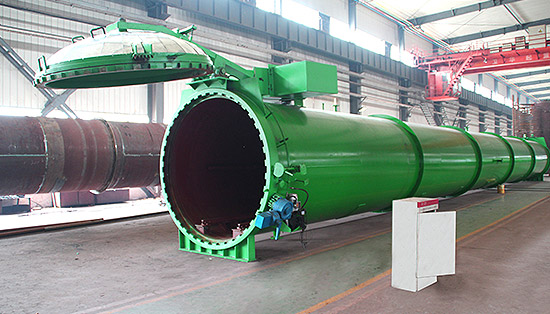

The top-opening autoclave adopts rotating arm type door open mechanism, rotating flexibly, easy to start, saving space.

top-opening autoclave3.jpg

ASME Certifications

ZBG holds Boiler and Pressure Vessels ASME certification of American Society of Mechanical Engineers, with large-scale power station boiler project total package qualification can provide customers a full range of products and services.

Top-opening Autoclave system
Model kettle diameter
(m)
Effective length Maximum working pressure
(Mpa)
Maximum working
temperature(℃)
Design pressure
(Mpa)
Design
temperature(℃)
Working mediu Total length
L(m)
Width
W(m)
Height
H(m)
FGZSS 1.0-1.65 x L Φ1.65 Customized 1.0 183 1.1 187
Saturated
steam
Condensate water
L+0.65 2.619 2.595
FGZSS 1.3-1.65 x L Φ1.65 1.3 195 1.4 198 L+0.65 2.619 2.595
FGZSS 1.0-2.0 x L Φ2.0 1.0 183 1.1 187 L+0.9 2.965 3.225
FGZSS 1.1-2.0 x L Φ2.0 1.1 187 1.2 192 L+0.9 2.965 3.225
FGZSS 1.3-2.0 x L Φ2.0 1.3 195 1.4 198 L+0.9 2.965 3.225
FGZSS 1.5-2.0 x L Φ2.0 1.5 201 1.6 204 L+0.9 2.965 3.255
FGZSS 1.3-2.2 x L Φ2.2 1.3 194 1.4 197 L+1.3 3.288 3.43
FGZSS 1.5-2.2 x L Φ2.2 1.5 201 1.6 204 L+1.3 3.288 3.43
FGZSS 1.3-2.4 x L Φ2.4 1.3 194 1.4 197 L+1.56 3.154 3.917
FGZSS 1.5-2.4 x L Φ2.4 1.5 201 1.6 204 L+1.56 3.154 3.917
FGZSS 1.3-2.5 x L Φ2.5 1.3 195 1.4 197 L+1.56 3.254 4.017
FGZSS 1.5-2.5 x L Φ2.5 1.5 201 1.6 204 L+1.56 3.254 4.017
FGZSS 1.3-2.68 x L Φ2.68 1.3 194 1.4 197 L+1.754 3.28 4.143
FGZSS 1.5-2.68 x L Φ2.68 1.5 201 1.6 204 L+1.754 3.28 4.143
FGZSS 1.3-2.85 x L Φ2.85 1.3 194 1.4 197 L+1.754 3.58 4.493
FGZSS 1.5-2.85 x L Φ2.85 1.5 201 1.6 204 L+1.754 3.58 4.493
FGZSS 1.3-3.0 x L Φ3.0 1.3 194 1.4 197 L+1.8 4.537 4.66
FGZSS 1.5-3.0 x L Φ3.0 1.5 201 1.6 204 L+1.8 4.537 4.66
FGZSS 1.3-3.2 x L Φ3.2 1.3 194 1.4 197 L+1.9 4.74 5.131
FGZSS 1.5-3.2 x L Φ3.2 1.5 201 1.6 204 L+1.9 4.74 5.131
