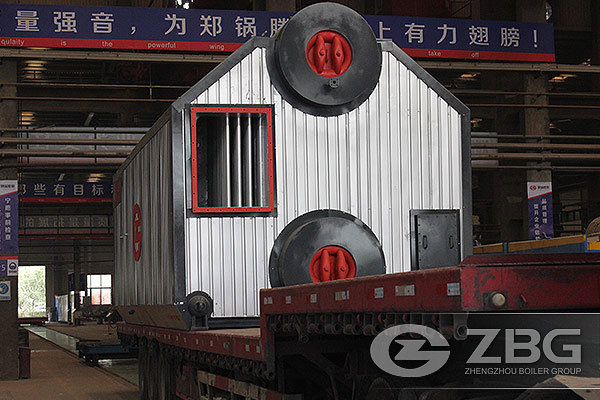

10 Ton Steam Boiler 1.6MPa Used For Paper Plant Nigeria
A famous company which is working in paper, paper board, pulp,... business in Nigeria is looking for steam boiler 10 ton 1.6MPa for its processing. According to the company’s need, we have chain grate boiler burning coal or biomass to meet its production needs.

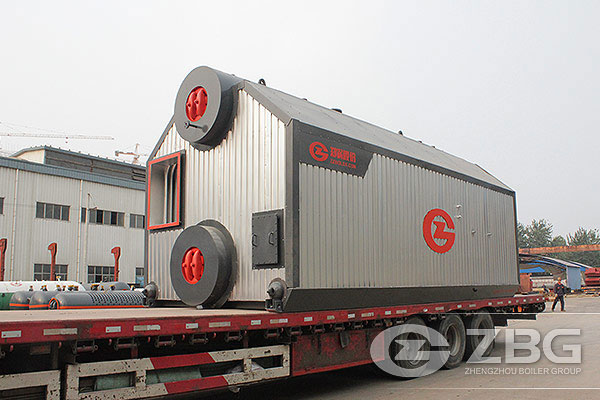

Coal and wood burning steam boiler parameters:
Rated steam capacity: 10t/h
Rated steam pressure: 1.6Mpa
Rated steam temperature: 204℃
Feeding water temperature: 104℃
Cold air temperature: 20℃
Test pressure: 1.65MPa
The effective area of the chain grate: 12.2m2
the furnace volume: 35.3m3
The excess air coefficient: 1.6
Design fuel: coal, wood
Pulp and paper plant boiler in Nigeria
Pulp is the main source for paper making. It is produce at pulp mill. After production paper pulp is supplied to paper mill for paper making. Wood is the most widely used raw material for paper pulp. Without wood there are some other things are used for pulp making that are cotton, linen, bombax wool, jute hemp, sisal hemp, Manila hemp, straw, esparto, Pineapple leaf fiber, palm, coconut fiber, sugar cane, Bamboo etc. The wood waste produced after paper making can be used as the chain grate boiler. ZBG has DZL, SZL, DHL, SHL, SHW and other series chain grate boilers, if you want to purchase a new coal and biomass boiler, contact us for price and solution!
