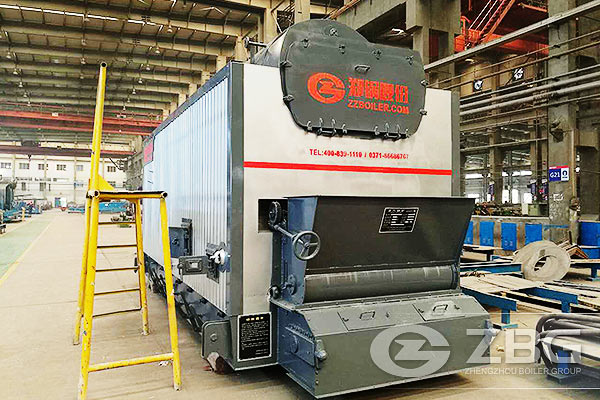

2 Ton Capacity Biomass and Coal Fired Boiler

A client left us a message “We need 2 ton capacity biomass and coal fired steam boiler. Pressure-8 bar. With complete air teatme”. The chain grate boiler DZL series is the right choice for the client, which is water-fire tube, package type, designing to burn coal (eg. Bituminous coal, anthracite coal, lean coal, coke coal) and biomass (eg. Wood, rice husk, bagasse, straw, coconut shell, corn, palm kernel shell).

Coal and biomass fired boiler ranging from 2 ton - 10 ton

The 2 - 10 ton chain grate boiler is steam boiler of horizontal type, single drum with traveling chain grate. The threaded gas pipe is inside the boiler drum, and both side water-cooling wall rounds thumb flue in drum’s belly. This structure protects effectively the boiler drum and avoids the belly directly radiated by fire. Boiler drum connects the two headers by two side water cooling wall. Four downcast pipes are foreside and rearward of boiler drum, and every pipe is led from drum to header. By this design, the drum and headers becomes a circulation loop together with the two sides water-cooling walls.

Why choose ZBG Packaged Chian Grate Boiler?

- Compact structure
- Quick and easy installation
- Highly efficient and reliable
- Cost-effective
- Clean and stable operation
- Multi-fuel capability

Chain grate boiler manufacturer and supplier

ZBG is a professional boiler supplier and manufacturer since its establishment in 1945. Over the years, we are committed to innovating and developing new products to better meet our clients' requirement and production needs.  Expect for the CFB type boilers, ZBG also offers chain grate type boilers that can burn coal and biomass, like our packaged type DZL boiler, water tube type SZL series boiler, DHL series corner tube boiler, etc.
