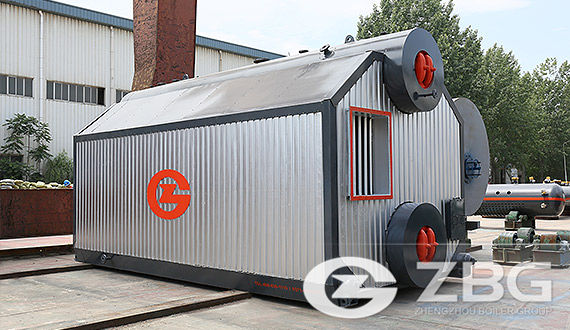

Double-drum Chain Grate Steam Boiler Exporter to India
SZL series assemble chain grate steam boiler, double-drum, water tube boiler, with strong overload capacity and a wide range of coal adaptability is a best choice for supplying steam in textile, printing and dyeing, paper making, chemical industry, and food industry. ZBG has exported chain grate coal fired steam boilers and hot water boilers to India market.
Double-drum Chain Grate Steam Boiler for India markets
Type: Steam
Capacity: 4~25t/h
Steam Pressure: 1.0~2.5Mpa
Steam Temperature: 194~226℃/
Feed Temperature: 70-130°C
SZL Chain Grate Steam Boiler Features
1. Membrane water-cooling wall structure and Inverted "α" arch furnace technology with a high heat transmission coefficient, low heat loss, good airtightness, no distortion for furnace wall and no ash leakage.
2. Longer front and back shaft than the other domestic ones, which prolongs the time of fuel combustion, lower the carbon content in the furnace slag, strengthen overload ability.
3. Furnace front and rear water wall tube extend down to the upper portion of the grate and form the front and back arch, which extends the span of arch.
4. Six independent air chambers can respectively adjust the air volume so as to achieve the best combustion effect.
Why choose SZL chain grate coal steam boiler?
ZBG is a China leading A-Class Boiler manufacturer, we can provide SZL chain grate steam boiler based on each customer’s requirements.
Established in 1945, over 70 years experience in SZL biomass fired boiler enables us to manufacture the best quality and performance SZL Chain Grate Steam Boiler.
SZL Chain Grate Steam Boiler is ISO9001:2008, ASME U and ASME S certified
