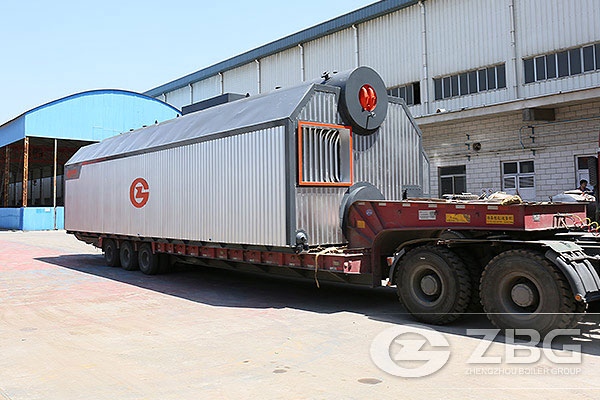

Traveling Grate Boiler in Sugar milling
Raw brow sugar milling needs steam for its production. ZBG provides various types of steam boilers for the industry, here we’ll have a brief introduction of traveling grate boiler for sugar mill.
Traveling grate boiler for sugar mill manufactured by ZBG has been integrated in the latest technologies, the furnace arch design uses inverted "α" arch furnace technology invented by Xi'an Jiaotong University. The both sides of the furnace and burning embers room are adopted membrane wall structure to improve the efficiency and achieve energy saving.
1-Horizontal Automatic chain steam boiler, single drum fire-water tube chain grate boiler.
2-Boiler main body is a single drum longitudinal layout. Drum and water tubes at both side forms radiation heating surface.
3-Water tube forms convection surface. While threaded fire tube in the drum forms fire tube convection surface.
4-Boiler consists of upper body and lower grates, which is combined at work site. Economizer is at the rear.
5-Eclectic control cabinet can supervise the over temperature and lower.
6-Pressure alarming and interlock protection, which makes steam boiler safe and reliable and easy to operate.
