10 Ton Gas Fired Steam Boiler China

ModelSZS series gas fired steam boiler

Capacity10 ton

Applicationmetallurgical plant

case case case

Overview

SZS10-1.25-Y.Q main parameters:
Rated steam capacity: 10t/h
steam temperature:193.3℃
Rated steam pressure:1.25MPa
Design thermal efficiency: 93%
Flue gas temperature:145℃
Feed water temperature:20℃

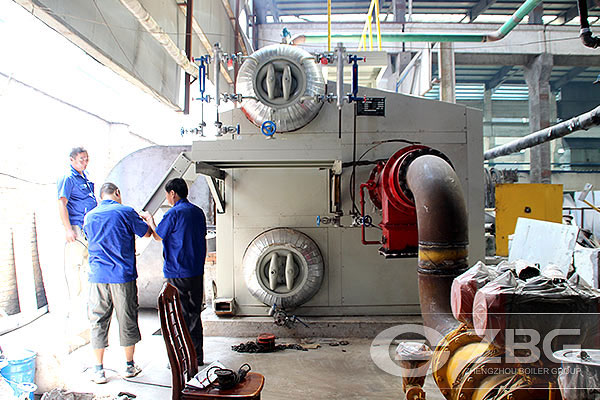

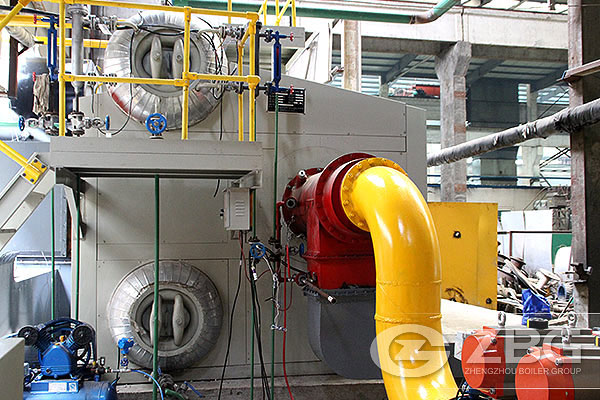

10 ton water tube gas fired steam boiler operaton site

The SZS series gas oil fired boiler is double-drum D type water tube boiler.
1. It adopts slightly negative pressure combustion, and configures blower and induced draft fan, its thermal efficiency is fairly high and it can operate safely.
2. The D type steam boiler is suitable for a wide range of fuels, large boiler capacity range.
3. Its design pressure has a wide range, and the steam quality is quite high.
4. Using membrane water-cooled wall structure, good sealing and heat resistance.

The set of 10 ton gas fired boiler runs well from the beginning, the thermal efficiency achieves the initial estimate. Our clients are very satisfied with the operation condition , for the boiler has provided sufficient power to drive the forging machine in the aluminum plant.

Background

Steam boilers are widely used in industries providing large quantity of steam or power. Aluminum plant in Gongyi is a large scale aluminum manufacturing industry, which provides high quanlity of aluminum production for recent years. This company ordered one set of 10 ton gas fired steam boiler, the equipment is to provide power and drive the forging machine. According to their needs, our boiler engineer recommended our SZS10-1.25-Y.Q gas fired steam boiler.

If you have any questions, please contact our Executive Manager and we will get back to you as soon as possible
