Waste Heat Boiler of Dry Quenching

2016-08-23

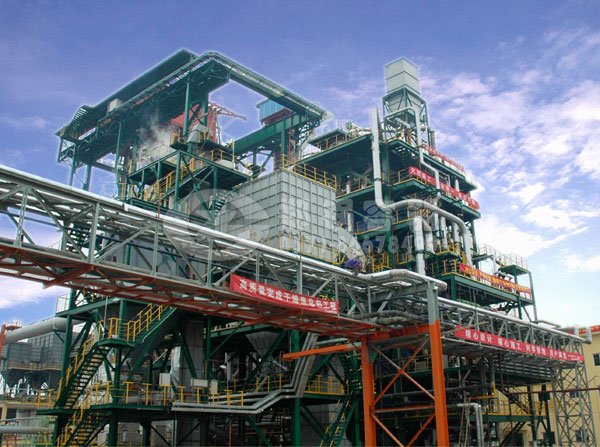

Waste Heat Boiler of Dry Quenching

Waste Heat Boiler of Dry Quenching is the use of an inert gas cooled coke, after the heat of the inert gas is passed to the boiler, and then fed by a circulating fan Waste Heat Boiler of Dry Quenching coke production cycle using energy-saving equipment.

Waste Heat Boiler of Dry Quenching not only saves energy, reducing costs, reduces environmental pollution, but also improves coke quality and has many other advantages. Waste Heat Boiler of Dry Quenching coke production process is  a major energy-saving equipment , while Waste Heat Boiler of Dry Quenching furnace cooling cycle gas is to generate steam. ZG Waste Heat Boiler of Dry Quenching development of new pan heat recovery system has a unique place, which has been widely applied, effectively overcomes the boiler seal, wear, expansion, and other special problems, and to adapt to changes in the system load Waste Heat Boiler of Dry Quenching capacity is very advantageous. Waste Heat Boiler of Dry Quenching processing capacity ( for example 65 ~ 140t / h):

 Flow Rate: 90400 ~ 199100m3 / h; inlet gas temperature: 930 ~ 960 ℃; maximum evaporation capacity: 36.5 ~ 84t / h; Rated steam pressure: 3.82 ~ 4.8MPa; rated steam temperature: 450 ~ 480 ℃; boiler feedwater temperature: 104 ℃; furnace forms: the membrane wall; circulation: natural / forced; steam uses: heating, cooling and power generation.

CDQ waste heat boiler,boiler
