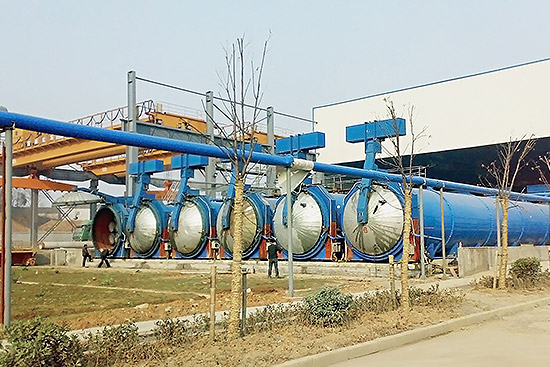

Hydraulic-opening Autoclave
Hydraulic-opening autoclaves have the same technology support and horizontal structure with others, except for door opening method. Opening autoclave door through hydraulic driven force can be simply interpreted as hydraulic-opening door autoclave.
-
Diameter
5m-60m
-
Pressure
1.0MPa-1.6MPa
-
Length
>1.5m
-
Application
Building Material
High-quality raw materials
a. Professional imported rubber seal, good sealed, easy installation, long service life.
b. Autoclave cover flange adopts 16Mn solid forging process, with ultrasonic nondestructive testing, being higher national pressure vessel standard.
Advanced processing technology
a. Pipeline operations, automatic welding, stable quality and high efficiency.

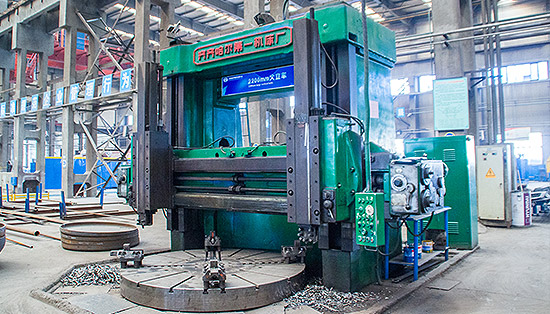

b. CNC vertical lathe directly rolls autoclave door steel, reduce number of welding, improving its leakproofness and safety.

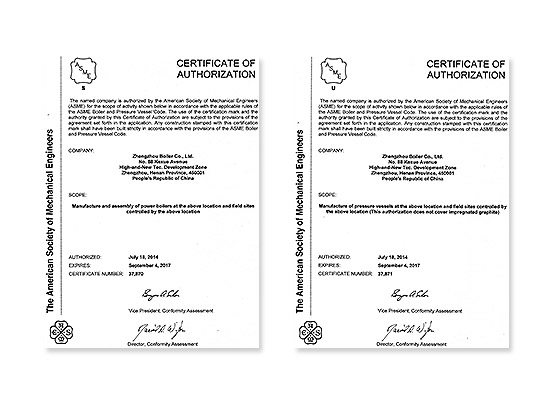

ASME Certifications
ZBG holds Boiler and Pressure Vessels ASME certification of American Society of Mechanical Engineers, with large-scale power station boiler project total package qualification can provide customers a full range of products and services.
| Model | kettle diameter (m) |
Effective length | Maximum working pressure (Mpa) |
Maximum working temperature(℃) |
Design pressure (Mpa) |
Design temperature(℃) |
Working mediu | Total length L(m) |
Width W(m) |
Height H(m) |
| FGZSY 1.0-1.65 x L | Φ1.65 | Customized | 1.0 | 183 | 1.1 | 187 | Saturated steam Condensate water |
L+0.65 | 2.619 | 2.595 |
| FGZSY 1.3-1.65 x L | Φ1.65 | 1.3 | 195 | 1.4 | 198 | L+0.65 | 2.619 | 2.595 | ||
| FGZSY 1.0-2.0 x L | Φ2.0 | 1.0 | 183 | 1.1 | 187 | L+0.9 | 2.965 | 3.225 | ||
| FGZSY 1.1-2.0 x L | Φ2.0 | 1.1 | 187 | 1.2 | 192 | L+0.9 | 2.965 | 3.225 | ||
| FGZSY 1.3-2.0 x L | Φ2.0 | 1.3 | 195 | 1.4 | 198 | L+0.9 | 2.965 | 3.225 | ||
| FGZSY 1.5-2.0 x L | Φ2.0 | 1.5 | 201 | 1.6 | 204 | L+0.9 | 2.965 | 3.255 | ||
| FGZSY 1.3-2.2 x L | Φ2.2 | 1.3 | 194 | 1.4 | 197 | L+1.3 | 3.288 | 3.43 | ||
| FGZSY 1.5-2.2 x L | Φ2.2 | 1.5 | 201 | 1.6 | 204 | L+1.3 | 3.288 | 3.43 | ||
| FGZSY 1.3-2.4 x L | Φ2.4 | 1.3 | 194 | 1.4 | 197 | L+1.56 | 3.154 | 3.917 | ||
| FGZSY 1.5-2.4 x L | Φ2.4 | 1.5 | 201 | 1.6 | 204 | L+1.56 | 3.154 | 3.917 | ||
| FGZSY 1.3-2.5 x L | Φ2.5 | 1.3 | 195 | 1.4 | 197 | L+1.56 | 3.254 | 4.017 | ||
| FGZSY 1.5-2.5 x L | Φ2.5 | 1.5 | 201 | 1.6 | 204 | L+1.56 | 3.254 | 4.017 | ||
| FGZSY 1.3-2.68 x L | Φ2.68 | 1.3 | 194 | 1.4 | 197 | L+1.754 | 3.28 | 4.143 | ||
| FGZSY 1.5-2.68 x L | Φ2.68 | 1.5 | 201 | 1.6 | 204 | L+1.754 | 3.28 | 4.143 | ||
| FGZSY 1.3-2.85 x L | Φ2.85 | 1.3 | 194 | 1.4 | 197 | L+1.754 | 3.58 | 4.493 | ||
| FGZSY 1.5-2.85 x L | Φ2.85 | 1.5 | 201 | 1.6 | 204 | L+1.754 | 3.58 | 4.493 | ||
| FGZSY 1.3-3.0 x L | Φ3.0 | 1.3 | 194 | 1.4 | 197 | L+1.8 | 4.537 | 4.66 | ||
| FGZSY 1.5-3.0 x L | Φ3.0 | 1.5 | 201 | 1.6 | 204 | L+1.8 | 4.537 | 4.66 | ||
| FGZSY 1.3-3.2 x L | Φ3.2 | 1.3 | 194 | 1.4 | 197 | L+1.9 | 4.74 | 5.131 | ||
| FGZSY 1.5-3.2 x L | Φ3.2 | 1.5 | 201 | 1.6 | 204 | L+1.9 | 4.74 | 5.131 |
