110 ton CFB boiler to India

Overview

Indian 110 ton CFB boiler main working parameter

the rated evaporating capacity:110 t/h
the rated steam pressure:6.5 MPa
the rated steam temperature:485 ℃
feed water temperature:130 ℃
fume exhaust temperature for boiler:135 ℃
blow down ratio:≤2 %
cool air temperature:30 ℃
hot air temperature:144 ℃
the design thermal efficiency for boiler: 88.08 %
（Ca/S 2.2）desulphurizing efficiency: ≥85%
the mixed fuel consumption:23136.1 kg/h
the coal consumption:16195.27 kg/h
the rice husk consumption: 6940.83 kg/h

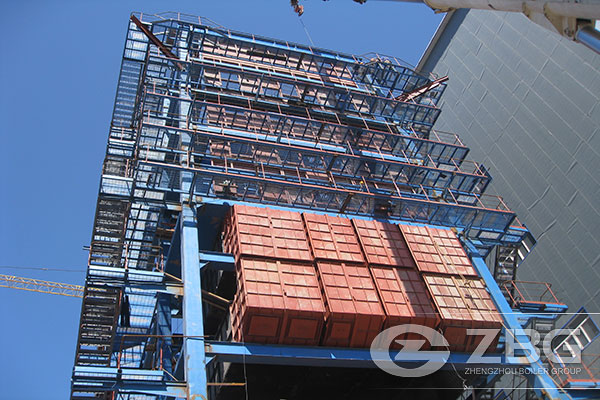

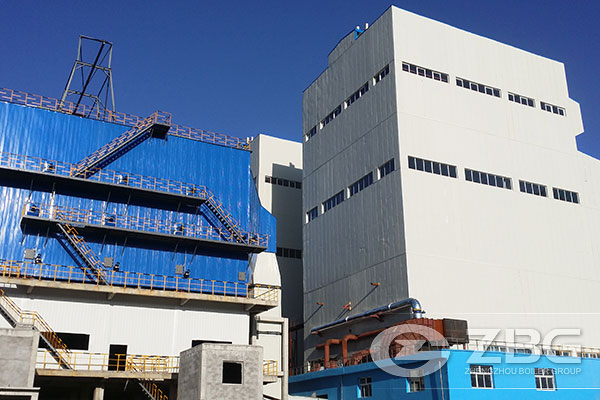

110 ton circulating fluidized bed boiler India

The 110 ton CFB power plant boiler exported to India can burn both coal and rice husk. For coalfuel is in short supply in India, but biomass resources is rich. We specially designed the boiler co-combustion coal & rice husk circulating fluidized bed steam boiler for our valued Indian client. Our company has won great praise for the boiler’s high efficient, energy saving and long term operation in India.

Background

India, a large country with fast developing agriculture, has many biomass fuel available. In 2012, we signed a contract with an Indian company about a set of 110 ton CFB boiler, which burnt coal and rice husk as fuel, for supplying power in the paper plant.
