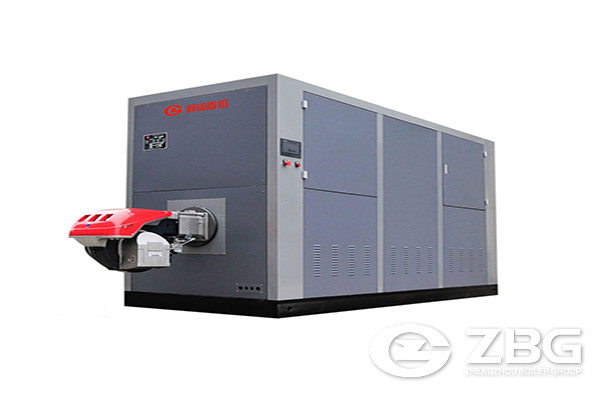

ModelVacuum hot water boilers
Applicationcentral heating or enterprise
The steam is generated when the water boiling with lower temperature and lower pressure, and the energy is passed by steam condensation. It is vacuum inside, and the water in the vacuum pot turn into high temperature steam and then condensing on the heat exchanges, then the water in the pipe is heated. The water in the vacuum pot has no increase, reduce, in or out, it transfers the power with U tube and heat exchange. The vacuum boiler in ZG Boiler take three-pass structure, the second return pipe with threaded smoke pipe, heat transfer is enhanced. The third return pipe using the smooth pipe, reduce flue gas flow resistance. Large heating surface, low temperature heat medium, large temperature difference, the exhaust gas temperature is low.The overall thermal efficiency is up to 92 percent or more. Never furnace fouling, it can run for many years to maintain high efficiency.

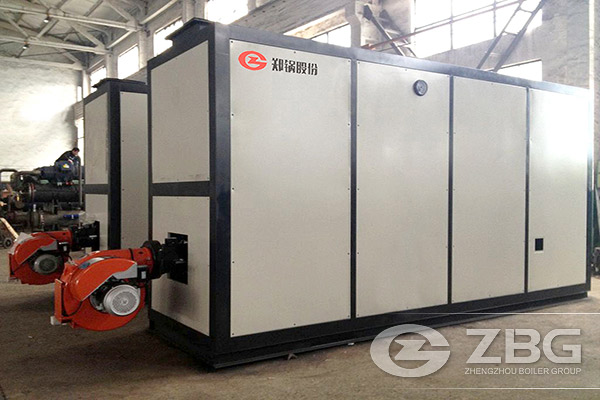

With the increasing need in heating for people’s daily life, the traditional boiler can not meed the need with low efficiency and high consumption. In order to solve this problem, ZG Boiler invented new vacuum boiler, which improved the efficiency of hot water boiler. The two vacuum hot water boilers in Handan provided enough energy for the industry, saved the cost.
